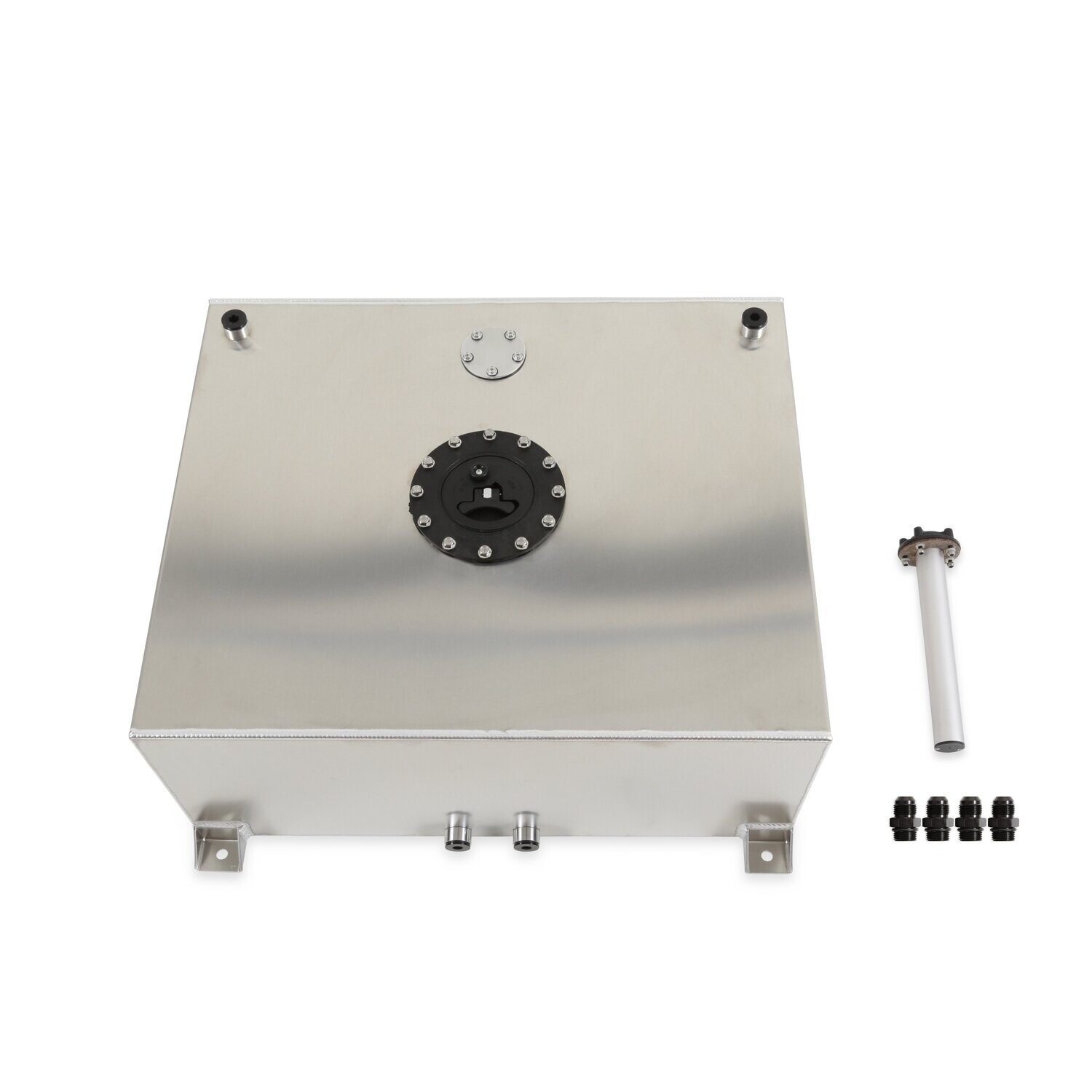

Aluminum Fuel Cell 20 Gallon

Product Details

Flat Bottom w/ 19-228 (9" depth) Fuel Gauge Sender 20 Gallon
Offered in both flat bottom or rear sump to help prevent fuel starvation
-10AN ORB ports (feed, return, vent) for high flow
Readily adaptable -10AN ORB ports to -6AN, -8AN and -12AN avoids cutting and re-welding male weld bungs
ORB ports are welded from the inside for a clean look
Made from 2.5mm thick 5052 aluminum
Fully TIG welded
Modular design to be easily upgraded gives customer flexibility to add options to suit their needs
Anti-slosh foam included and pre-cut to clear fuel level sender *NOTE: foam is not E85 compatible*
Pre-welded triangulated mounted tabs for added support and easy installation
Includes flush-mount aircraft-style cap, fuel sender block-off plate, -10AN plugs and -10AN male adapters
12-bolt flush-mount cap assembly can be upgraded to a billet fuel cap or an in-tank fuel cell pump module
5-bolt fuel sender block-off plate can be removed and a fuel gauge tube level sender can be installed
0-90 Ohms (empty-full) works with most aftermarket gauges
Standard SAE 5-bolt mounting pattern
Tube design acts a damper for consistent readings
Save space and eliminate need for a float arm
Comes with gasket and mounting hardware, E85 compatible
9-inch depth (PN: 19-228) for 15 & 20-gallon fuel cells
