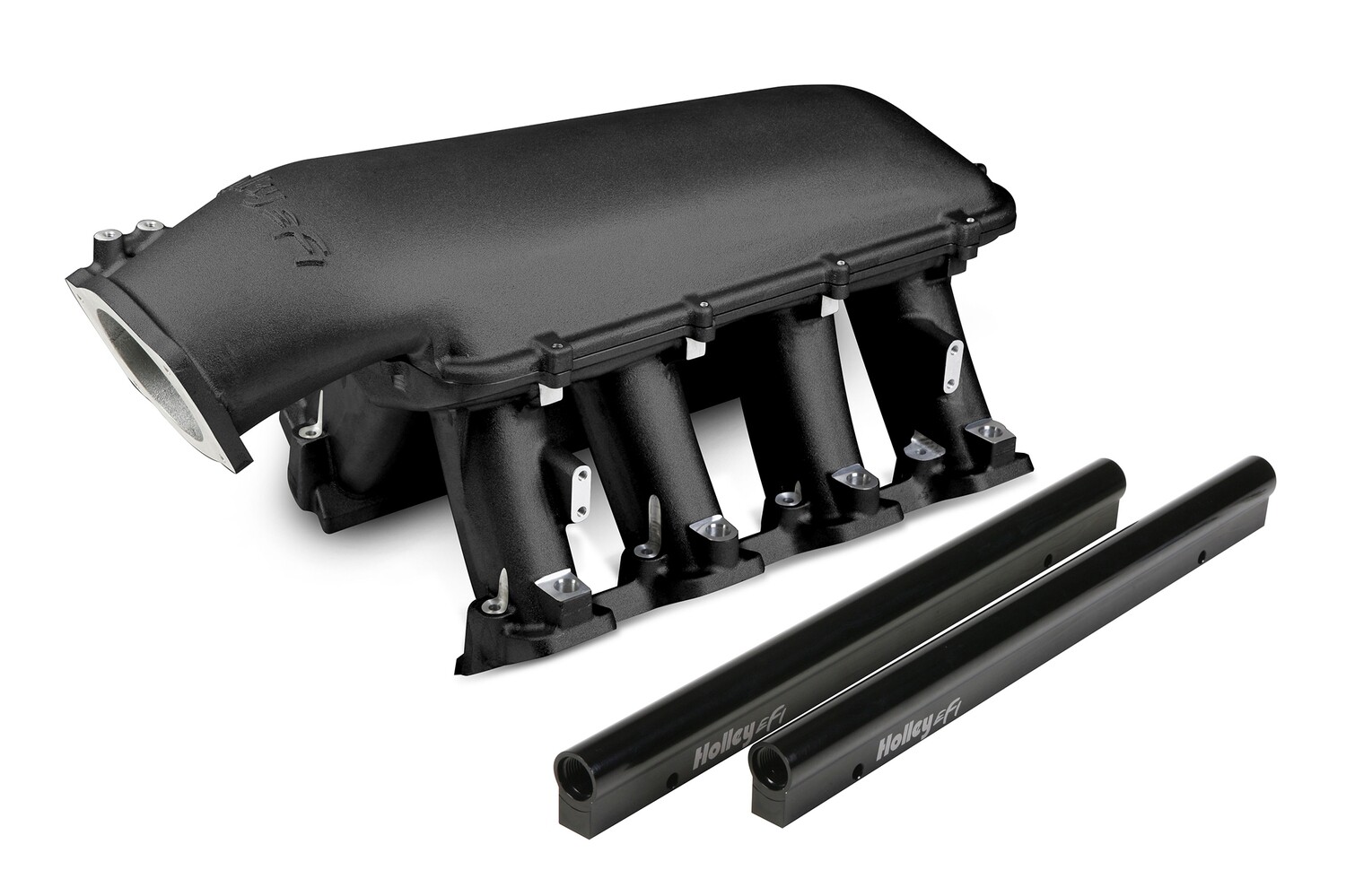

Holley Hi-Ram Intake - GM LS3/L92 - Black EFI Hi-Ram Intake for 1 x 105mm GM LS3/L92 Throttle Body - Longitudinal Mount Plenum Top

SKU 300-117BK
$1,201.13
In stock
Share this product with your friends
Pin it
Holley Hi-Ram Intake - GM LS3/L92 - Black EFI Hi-Ram Intake for 1 x 105mm GM LS3/L92 Throttle Body - Longitudinal Mount Plenum Top
Product Details
Estimated Ship Date: 06/16/2023
The Holley GM LS3/L92 Modular Hi-Ram Intake Manifold is introduced as a cost effective alternative to fabricated sheet-metal for high-performance applications where induction system height is not limited. Coupling this Hi-Ram intake with the high flowing LS3/L92 style cylinder heads has outstanding potential for N/A and forced induction applications at a budget-minded cost. Aggressive, bold, race-bred styling will make bad intentions clear for drag race, muscle car, marine, off-road, sandrails, pulling trucks, track, street-rod applications and more! • The base is designed to be modular in configuration to accept a wide range of carbureted and EFI tops and to be attractive to builders and fabricators as the foundation for custom induction systems. • Runner length and the tapered cross-section designed to perform well for a wide range of engine configurations • EFI fuel rails are machined for -8AN O-ring fittings with passages large enough to accommodate high fuel flows and dampen pressure pulsations in the fuel system and come standard with EFI Hi-Ram kits. • Cast aluminum construction. • Intended for use on N/A or forced induction engines in the 6.0 to 7.0+ liter range, max power at 7000-8000+RPM.

Features:

  • Base Plenum Top Mounting Flange Height – 8.42” to the lifter valley cover flange on engine block.
  • Total Height with 92/105mm EFI Plenum Top – 12.32” to the lifter valley cover flange on engine block.
  • Port Size – 2.49” Height x 1.21” Wide
  • Mounting Flange Gasket Type – Standard LS3 Molded O-Ring
  • Plenum Top Gasket Type – 3/32” Round O-ring Cord
  • Throttle Body Flange Location, with 92/102mm EFI Plenum Top : Height – 8.42” (from engine block lifter valley cover flange), Longitudinal Location – 3.84” (forward from engine block front flange), Angle – 25 deg. (down from vertical)
  • Runner Length – 6.50”, As-Cast Runner Cross-Sectional Area – Tapered 4.25 in² to 2.77 in²
  • Manifold has provisions for (1) 3/8 NPT and (2) 1/8 NPT fittings
  • This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
    The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle


WARNING: It is against the law to install this part on an Emissions Controlled Vehicle


The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
