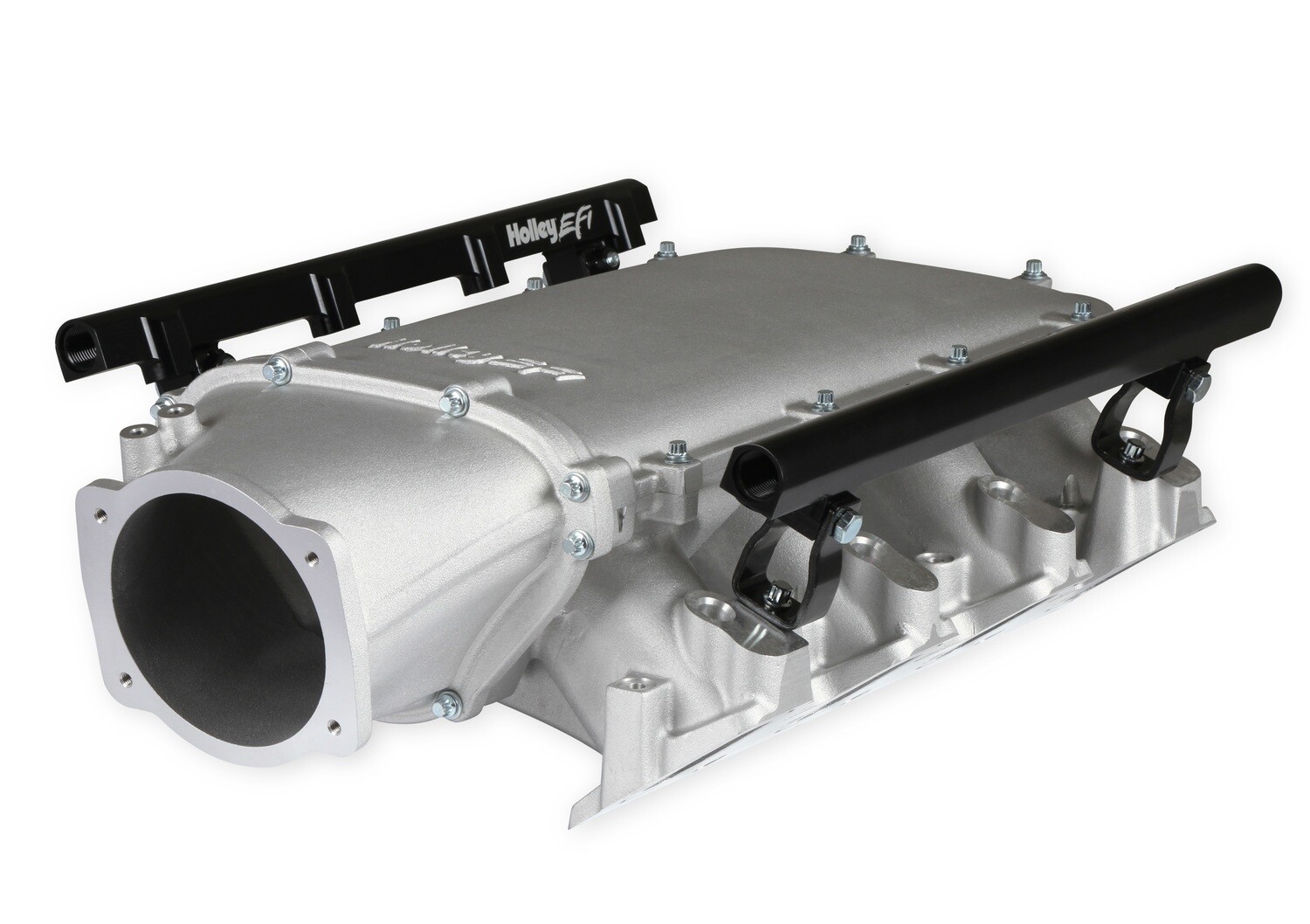

Holley Ultra Lo-Ram Manifold Kit Single Injector- Satin - GM LS3/L92 Ultra Lo-Ram Manifold Kit - LS3

SKU 300-680
$858.87
On Sale
was $876.00 Save 2%
In stock
Share this product with your friends
Pin it
Holley Ultra Lo-Ram Manifold Kit Single Injector- Satin - GM LS3/L92 Ultra Lo-Ram Manifold Kit - LS3
Product Details
Available with single or dual injector provisions and a burst panel flange, the LS3 Ultra Lo-Ram intake manifold is designed for boosted combinations with hood clearance in mind. The Holley LS3 Ultra Lo-Ram intake manifold kits are designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads. These intake manifolds will work with OE or aftermarket cylinder heads. The Lo-Ram intake manifolds are designed for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application. The front plenum flange has a 105 mm opening to work with throttle body part number 112-581 or similar models. The base intake manifold is designed with a lower overall height to fit under a stock or mildly modified hood in the front configuration. The LS3 Lo-Ram is constructed to provide a very low profile modular intake manifold suitable for fabrication of special throttle body adapters or inlet ducts for custom installations. Available with single or dual injector provisions and a burst panel flange options. The fuel rail kits come with two sets of brackets. A set for long (usually standard length) fuel injectors and a set for short (such as Pico, or LS7) fuel injectors.

Features:

  • Designed for GM LS Gen III and IV engines equipped with GM LS3/L92 cylinder heads•
  • Engineered for forced induction (supercharged or turbocharged) engine applications with peak power at 7000-8000 rpm depending on the application.
  • Low height to fit under a stock or mildly modified hood in the front configuration
  • Front entry plenum flange allows design & fabrication of special throttle body adapters or inlet ducts for custom installations
  • Clears C6 Corvette cowls and hoods without modification
  • Available with single or dual injector provisions and a burst panel flange.
  • High volume fuel rails for eight and sixteen injector configurations. Mounting hardware included with 3/4-16 O-ring ports (8 AN)
  • Billet options for the top and throttle body adapters are available seperately.
  • This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles.
    The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:
  • 1965 and older U.S. manufactured California Certified vehicles
  • 1967 and older U.S. manufactured Federally Certified vehicles
  • 1967 and older Foreign manufactured vehicle


WARNING: It is against the law to install this part on an Emissions Controlled Vehicle


The following vehicles are considered Emissions Controlled Vehicles:

  • 1966 and newer U.S. manufactured California Certified vehicles
  • 1968 and newer U.S. manufactured Federally Certified vehicles
  • 1968 and newer Foreign manufactured vehicle
