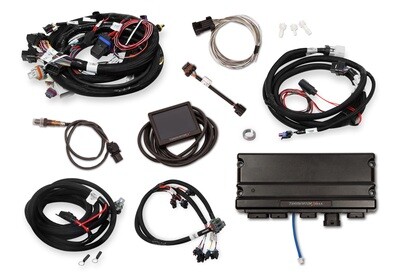

Terminator X MAX
Features and Benefits
- Plug and play LS engine control
- GM Drive-by Wire throttle body control
- GM Transmission Control (4L60/4L80)
- Genuine Bosch LSU 4.9 Wideband Control (Will not work with LSU 4.2 Oxygen Sensors)
- On-Board Diagnostic LEDS for: ECU Power – Engine Run – Wideband Status – TPS Calibration – Crank Signal – Cam Signal. Allow you to identify any Critical engine issues at a glance
- MAP Sensor vacuum hose adapters (1/8th – ¼ and 3/16ths)
- 4 Inputs – 12v, Ground, 5v, and Frequency, for things such as additional pressure sensors, or activation triggers for nitrous activation, or a trans brake (Fuel and Oil Pressure Inputs are pre-terminated)
- 4 Outputs – Ground, PWM - , for accessories such as; fans, boost control, nitrous control, IAC Kit, and More
- Boost Control – Boost vs Time, Boost vs Gear, Boost vs RPM, Boost vs Speed, Boost Safeties
- Nitrous Control – Single Channel of Wet or Dry, Progressive or Non-Progressive, Rich/Lean Safeties, and target Closed Loop AFR
- Advanced Tables – 4x 1D Tables, 1x 1D per Gear Table, 4x 2D Tables, 1x 2D per Gear Table
- Integrated Datalogging to the 3.5” Handheld SD Card
- Free EFI Tuning Software for complete control of your Terminator X power plant
The Ultimate LS Powertrain Management Solution
On Sale
Terminator X Max - Gen III 4.8/5.3/6.0 GM Truck Engines 24x Crank - 1x Cam - Multec 2 Injectors - Transmission Control - 3.5 in. Touchscreen
Terminator X Max - Gen III 4.8/5.3/6.0 GM Truck Engines 24x Crank - 1x Cam - Multec 2 Injectors - Transmission Control - 3.5 in. Touchscreen
SKU 550-917
was
$1,853.00
Save
2%
$1,816.98
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Transmission Control - 3.5 in. Touchscreen
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Transmission Control - 3.5 in. Touchscreen
SKU 550-918
was
$1,853.00
Save
2%
$1,816.98
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Drive-By-Wire Throttle Body Control - 3.5 in. Touchscreen
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Drive-By-Wire Throttle Body Control - 3.5 in. Touchscreen
SKU 550-931
was
$1,853.00
Save
2%
$1,816.98
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Transmission Control - Tuning Cable
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Transmission Control - Tuning Cable
SKU 550-918T
was
$1,795.00
Save
2%
$1,760.30
On Sale
Terminator X Max - Gen III 4.8/5.3/6.0 GM Truck Engines 24x Crank - 1x Cam - Multec 2 Injectors - Drive-By-Wire Throttle Body Control - 3.5 in. Touchscreen
Terminator X Max - Gen III 4.8/5.3/6.0 GM Truck Engines 24x Crank - 1x Cam - Multec 2 Injectors - Drive-By-Wire Throttle Body Control - 3.5 in. Touchscreen
SKU 550-930
was
$1,853.00
Save
2%
$1,816.98
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3 58x Crank - 4x Cam - EV1 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3 58x Crank - 4x Cam - EV1 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
SKU 550-935
was
$2,085.00
Save
2%
$2,044.79
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3 58x Crank - 4x Cam - EV1 Injectors - Drive-By-Wire Throttle Body Control - 3.5 in. Touchscreen
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engines and LS2/LS3 58x Crank - 4x Cam - EV1 Injectors - Drive-By-Wire Throttle Body Control - 3.5 in. Touchscreen
SKU 550-933
was
$1,853.00
Save
2%
$1,816.98
On Sale
Terminator X Max - LS1/LS6 24x Crank - 1x Cam - EV1 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
Terminator X Max - LS1/LS6 24x Crank - 1x Cam - EV1 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
SKU 550-926
was
$2,085.00
Save
2%
$2,044.79
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV1 Injectors - Transmission Control - 3.5 in. Touchscreen
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV1 Injectors - Transmission Control - 3.5 in. Touchscreen
SKU 550-920
was
$1,853.00
Save
2%
$1,816.98
On Sale
Terminator X Max Gen III 4.8/5.3/6.0 GM Truck Engines 24x Crank - 1x Cam - Multec 2 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
Terminator X Max Gen III 4.8/5.3/6.0 GM Truck Engines 24x Crank - 1x Cam - Multec 2 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
SKU 550-927
was
$2,085.00
Save
2%
$2,044.79
On Sale
Terminator X Max - LS1/LS6 24x Crank - 1x Cam - EV6 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
Terminator X Max - LS1/LS6 24x Crank - 1x Cam - EV6 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
SKU 550-934
was
$2,085.00
Save
2%
$2,044.79
On Sale
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
Terminator X Max - Gen IV 4.8/5.3/6.0 GM Truck Engine and LS2/LS3 58x Crank - 4x Cam - EV6 Injectors - Drive-By-Wire Throttle Body and Transmission Control - 3.5 in. Touchscreen
SKU 550-928
was
$2,085.00
Save
2%
$2,044.79
